Loudspeaker

A loudspeaker, often referred to simply as a speaker, is an electroacoustic transducer that converts electrical signals into audible sound waves. It plays a crucial role in audio reproduction systems, such as radios, televisions, home stereo systems, and public address systems, by producing sound from electronic audio signals.

Here's how a typical loudspeaker works:



1. Diaphragm: The core component of a loudspeaker is a diaphragm, usually made of lightweight materials like paper, plastic, or metal. This diaphragm is mounted in a frame, often called a cone, and it's typically conical or dome-shaped.
2. Voice Coil: Attached to the diaphragm is a coil of wire known as the voice coil. This coil is suspended within the magnetic gap of a magnet assembly.
3. Magnet Assembly: The magnet assembly consists of one or more permanent magnets and a pole piece. The magnetic field created by the magnets interacts with the current flowing through the voice coil, causing it to move.
4. Electrical Signal: An audio signal, which is an electrical representation of sound, is sent to the speaker through wires. This signal is applied to the voice coil.
5. Movement: When an electrical current flows through the voice coil, it generates a magnetic field that interacts with the permanent magnetic field. This interaction causes the voice coil and the attached diaphragm to move back and forth in accordance with the electrical signal.
6. Sound Generation: As the diaphragm moves, it compresses and rarefies the air around it. This compression and rarefaction of air create sound waves that correspond to the original audio signal.
7. Sound Output: The sound waves produced by the diaphragm are then radiated into the surrounding environment through the front of the speaker, which is often covered with a grille to protect the delicate components.



Speakers come in various sizes and designs, each tailored for specific purposes. For example, large woofers are designed to reproduce low-frequency bass sounds, while smaller tweeters are specialized for high-frequency treble sounds. A typical speaker system may include multiple speakers (e.g., woofers, tweeters, midrange drivers) to cover a wide range of frequencies and produce high-quality audio.



Advancements in speaker technology have led to the development of various types of speakers, including dynamic speakers, electrostatic speakers, planar magnetic speakers, and more, each with its own set of characteristics and applications.

Top of Form

Hi-fi speaker system for home use with three types of dynamic drivers

1.   Mid-range driver

2.   Tweeter

3.   Woofers

The hole below the lowest woofer is a port for a bass reflex system.

A loudspeaker (commonly referred to as a speaker or speaker driver) is an electroacoustic transducer that converts an electrical audio signal into a corresponding sound. A speaker system, also often simply referred to as a speaker or loudspeaker, comprises one or more such speaker drivers, an enclosure, and electrical connections possibly including a crossover network. The speaker driver can be viewed as a linear motor attached to a diaphragm which couples that motor's movement to the motion of air, that is, sound. An audio signal, typically from a microphone, recording, or radio broadcast, is amplified electronically to a power level capable of driving that motor in order to reproduce the sound corresponding to the original unamplified electronic signal. This is thus the opposite function of the microphone; indeed the dynamic speaker driver, by far the most common type, is a linear motor in the same basic configuration as the dynamic microphone which uses such a motor in reverse, as a generator.

The dynamic speaker was invented in 1925 by Edward W. Kellogg and Chester W. Rice and issued as US Patent 1,707,570. Apr 2, 1929. When the electrical current from an audio signal passes through its voice coil-a coil of wire capable of moving axially in a cylindrical gap containing a concentrated magnetic field produced by a permanent magnet-the coil is forced to move rapidly back and forth due to Faraday's law of induction; this attaches to a diaphragm or speaker cone (as it is usually conically shaped for sturdiness) in contact with air, thus creating sound waves. In addition to dynamic speakers, several other technologies are possible for creating sound from an electrical signal, a few of which are in commercial use.

In order for a speaker to efficiently produce sound, especially at lower frequencies, the speaker driver must be baffled so that the sound emanating from its rear does not cancel out the (intended) sound from the front; this generally takes the form of a speaker enclosure or speaker cabinet, an often rectangular box made of wood, but sometimes metal or plastic. The enclosure's design plays an important acoustic role thus determining the resulting sound quality. Most high-fidelity speaker systems (picture at right) include two or more sorts of speaker drivers, each specialized in one part of the audible frequency range. The smaller drivers capable of reproducing the highest audio frequencies are called tweeters, those for middle frequencies are called mid-range drivers and those for low frequencies are called woofers. Sometimes the reproduction of the very lowest frequencies (20-~50 Hz) is augmented by a so-called subwoofer often in its own (large) enclosure. In a two-way or three-way speaker system (one with drivers covering two or three different frequency ranges) there is a small amount of passive electronics called a crossover network which helps direct components of the electronic signal to the speaker drivers best capable of reproducing those frequencies. In a so-called powered speaker system, the power amplifier actually feeding the speaker drivers is built into the enclosure itself; these have become more and more common, especially as computer speakers.

Smaller speakers are found in devices such as radios, televisions, portable audio players, personal computers (computer speakers), headphones, and earphones. Larger, louder speaker systems are used for home hi-fi systems (stereos), electronic musical instruments, sound reinforcement in theatres and concert halls, and in public address systems.

Terminology

The term loudspeaker may refer to individual transducers (also known as drivers) or to complete speaker systems consisting of an enclosure and one or more drivers.

To adequately and accurately reproduce a wide range of frequencies with even coverage, most loudspeaker systems employ more than one driver, particularly for higher sound pressure levels or maximum accuracy. Individual drivers are used to reproduce different frequency ranges. The drivers are named subwoofers (for very low frequencies); woofers (low frequencies); mid-range speakers (middle frequencies); tweeters (high frequencies); and sometimes supertweeters, for the highest audible frequencies and beyond. The terms for different speaker drivers differ, depending on the application. In two-way systems there is no mid-range driver, so the task of reproducing the mid-range sounds is divided between the woofer and tweeter. Home stereos use the designation tweeter for the high-frequency driver, while professional concert systems may designate them as HF or highs. When multiple drivers are used in a system, a filter network, called an audio crossover, separates the incoming signal into different frequency ranges and routes them to the appropriate driver. A loudspeaker system with n separate frequency bands is described as n-way speakers: a two-way system will have a woofer and a tweeter; a three-way system employs a woofer, a mid-range, and a tweeter. Loudspeaker drivers of the type pictured are termed dynamic (short for electrodynamic) to distinguish them from other sorts including moving iron speakers, and speakers using piezoelectric or electrostatic systems.

History

Johann Philipp Reis installed an electric loudspeaker in his telephone in 1861; it was capable of reproducing clear tones, but later revisions could also reproduce muffled speech.^[3] Alexander Graham Bell patented his first electric loudspeaker (a moving iron type capable of reproducing intelligible speech) as part of his telephone in 1876, which was followed in 1877 by an improved version from Ernst Siemens. During this time, Thomas Edison was issued a British patent for a system using compressed air as an amplifying mechanism for his early cylinder phonographs, but he ultimately settled for the familiar metal horn driven by a membrane attached to the stylus. In 1898, Horace Short patented a design for a loudspeaker driven by compressed air; he then sold the rights to Charles Parsons, who was issued several additional British patents before 1910. A few companies, including the Victor Talking Machine Company and Pathé, produced record players using compressed-air loudspeakers. Compressed-air designs are significantly limited by their poor sound quality and their inability to reproduce sound at low volume. Variants of the design were used for public address applications, and more recently, other variations have been used to test space-equipment resistance to the very loud sound and vibration levels that the launching of rockets produces.

Moving-coil

The first experimental moving-coil (also called dynamic) loudspeaker was invented by Oliver Lodge in 1898. The first practical moving-coil loudspeakers were manufactured by Danish engineers Peter L. Jensen and Edwin Pridham in 1915, in Napa, California. Like previous loudspeakers, these used horns to amplify the sound produced by a small diaphragm. Jensen was denied patents. Being unsuccessful in selling their product to telephone companies, in 1915 they changed their target market to radios and public address systems and named their product Magnavox. Jensen was, for years after the invention of the loudspeaker, a part owner of The Magnavox Company.

Kellogg and Rice in 1925 holding the large driver of the first moving-coil cone loudspeaker

Prototype moving-coil cone loudspeaker by Kellogg and Rice in 1925, with electromagnet pulled back, showing voice coil attached to the cone

The first commercial version of the speaker, sold with the RCA Radiola receiver, had only a 6-inch cone. In 1926 it sold for $250, equivalent to about $3000 today.

The moving-coil principle commonly used today in speakers was patented in 1925 by Edward W. Kellogg and Chester W. Rice and issued as US Patent 1,707,570. Apr 2, 1929. The key difference between previous attempts and the patent by Rice and Kellogg is the adjustment of mechanical parameters to provide a reasonably flat frequency response.

These first loudspeakers used electromagnets because large, powerful permanent magnets were generally not available at a reasonable price. The coil of an electromagnet, called a field coil, was energized by a current through a second pair of connections to the driver. This winding usually served a dual role, acting also as a choke coil, filtering the power supply of the amplifier that the loudspeaker was connected to. AC ripple in the current was attenuated by the action of passing through the choke coil. However, AC line frequencies tended to modulate the audio signal going to the voice coil and added to the audible hum. In 1930 Jensen introduced the first commercial fixed-magnet loudspeaker; however, the large, heavy iron magnets of the day were impractical and field-coil speakers remained predominant until the widespread availability of lightweight alnico magnets after World War II.

First loudspeaker systems

In the 1930s, loudspeaker manufacturers began to combine two and three drivers or sets of drivers each optimized for a different frequency range in order to improve frequency response and increase sound pressure level. In 1937, the first film industry-standard loudspeaker system, "The Shearer Horn System for Theatres", a two-way system, was introduced by Metro-Goldwyn-Mayer. It used four 15" low-frequency drivers, a crossover network set for 375 Hz, and a single multi-cellular horn with two compression drivers providing the high frequencies. John Kenneth Hilliard, James Bullough Lansing, and Douglas Shearer all played roles in creating the system. At the 1939 New York World's Fair, a very large two-way public address system was mounted on a tower at Flushing Meadows. The eight 27" low-frequency drivers were designed by Rudy Bozak in his role as chief engineer for Cinaudagraph. High-frequency drivers were likely made by Western Electric.

Altec Lansing introduced the 604, which became their most famous coaxial Duplex driver, in 1943. It incorporated a high-frequency horn that sent sound through a hole in the pole piece of a 15-inch woofer for near-point-source performance. Altec's "Voice of the Theatre" loudspeaker system was first sold in 1945, offering better coherence and clarity at the high output levels necessary in movie theaters. The Academy of Motion Picture Arts and Sciences immediately began testing its sonic characteristics; they made it the film house industry standard in 1955.

In 1954, Edgar Villchur developed the acoustic suspension principle of loudspeaker design. This allowed for better bass response than previously obtainable from drivers mounted in larger cabinets. He and his partner Henry Kloss formed the Acoustic Research company to manufacture and market speaker systems using this principle. Subsequently, continuous developments in enclosure design and materials led to significant audible improvements.

The most notable improvements to date in modern dynamic drivers, and the loudspeakers that employ them, are improvements in cone materials, the introduction of higher-temperature adhesives, improved permanent magnet materials, improved measurement techniques, computer-aided design, and finite element analysis. At low frequencies, Thiele/Small parameters electrical network theory has been used to optimize bass driver and enclosure synergy since the early 1970s.

Speaker systems

Speaker system design involves subjective perceptions of timbre and sound quality, measurements, and experiments. Adjusting a design to improve performance is done using a combination of magnetic, acoustic, mechanical, electrical, and materials science theory, and tracked with high-precision measurements and the observations of experienced listeners. A few of the issues speaker and driver designers must confront are distortion, acoustic lobing, phase effects, off-axis response, and crossover artifacts. Designers can use an anechoic chamber to ensure the speaker can be measured independently of room effects, or any of several electronic techniques that, to some extent, substitute for such chambers. Some developers eschew anechoic chambers in favor of specific standardized room setups intended to simulate real-life listening conditions.

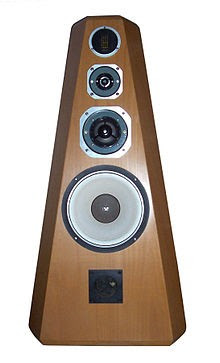

A four-way, high-fidelity loudspeaker system. Each of the four drivers outputs a different frequency range; the fifth aperture at the bottom is a bass reflex port.

Individual electrodynamic drivers provide their best performance within a limited frequency range. Multiple drivers (e.g., subwoofers, woofers, mid-range drivers, and tweeters) are generally combined into a complete loudspeaker system to provide performance beyond that constraint. The three most commonly used sound radiation systems are the cone, dome, and horn-type drivers.

Subwoofer

A subwoofer is a woofer driver used only for the lowest-pitched part of the audio spectrum: typically below 200 Hz for consumer systems, below 100 Hz for professional live sound, and below 80 Hz in THX-approved systems. Because the intended range of frequencies is limited, subwoofer system design is usually simpler in many respects than for conventional loudspeakers, often consisting of a single driver enclosed in a suitable enclosure. Since sound in this frequency range can easily bend around corners by diffraction, the speaker aperture does not have to face the audience, and subwoofers can be mounted in the bottom of the enclosure, facing the floor. This is eased by the limitations of human hearing at low frequencies; Such sounds cannot be located in space, due to their large wavelengths compared to higher frequencies which produce differential effects in the ears due to shadowing by the head, and diffraction around it, both of which we rely upon for localization clues.

To accurately reproduce very low bass notes, subwoofer systems must be solidly constructed and properly braced to avoid unwanted sounds from cabinet vibrations. As a result, good subwoofers are typically quite heavy. Many subwoofer systems include integrated power amplifiers and electronic subsonic filters, with additional controls relevant to low-frequency reproduction (e.g., a crossover knob and a phase switch). These variants are known as active or powered subwoofers. In contrast, passive subwoofers require external amplification.

In typical installations, subwoofers are physically separated from the rest of the speaker cabinets. Because of propagation delay and positioning, their output may be out of phase with the rest of the sound. Consequently, a subwoofer's power amp often has a phase-delay adjustment which may be used to improve the performance of the system as a whole. Subwoofers are widely used in large concert and mid-sized venue sound reinforcement systems. Subwoofer cabinets are often built with a bass reflex port, a design feature which if properly engineered improves bass performance and increases efficiency.

Woofer

A woofer is a driver that reproduces low frequencies. The driver works with the characteristics of the speaker enclosure to produce suitable low frequencies. Some loudspeaker systems use a woofer for the lowest frequencies, sometimes well enough that a subwoofer is not needed. Additionally, some loudspeakers use the woofer to handle middle frequencies, eliminating the mid-range driver.
